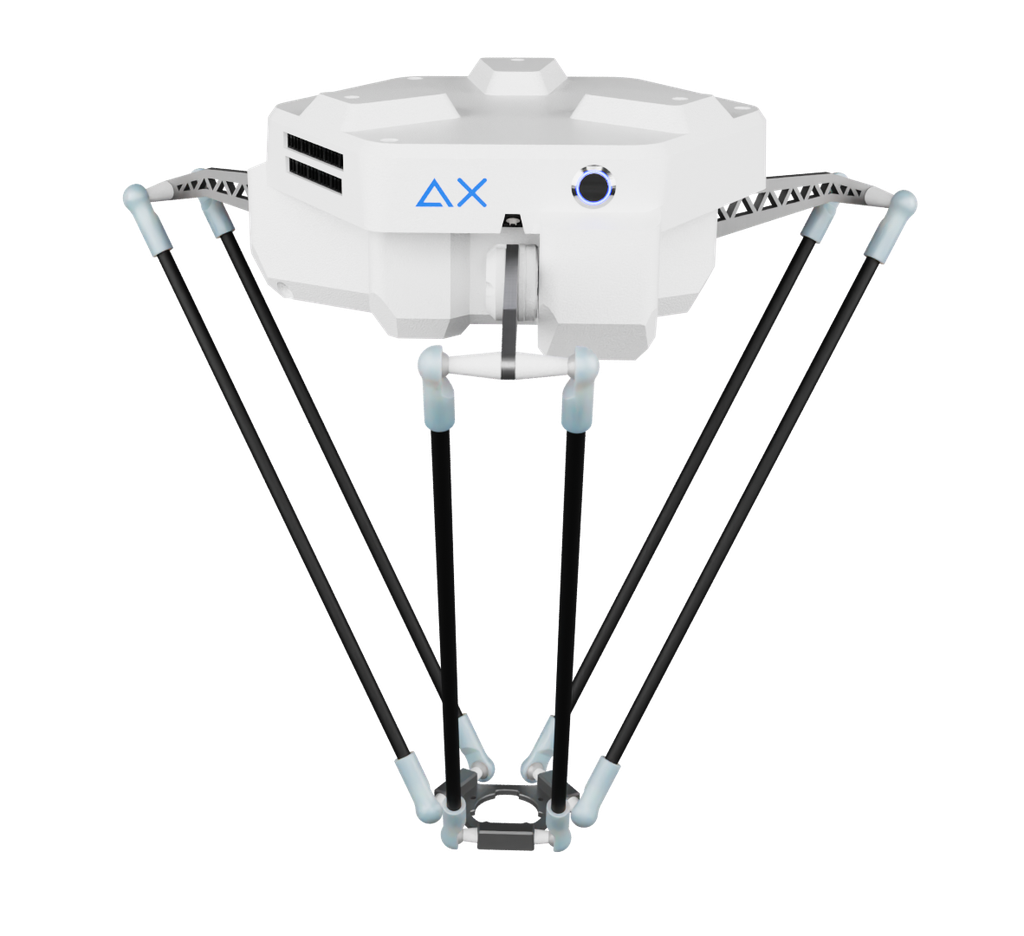

Delta X 3

• Max Payload
  • 1000 g
• Max Speed
  • 2200 mm/s
• Max Acceleration
  • 15 000 mm/s2
• Working space
  • D=340mm, H=200mm
• Weight
  • 6kg
• Frame
  • Hyper Cube Frame + $ 100.00
  • L Shape Frame + $ 120.00
  • No Frame
• Vision
  • XVision Kit V2 + $ 200.00
  • No Vision Kit
• Conveyor
  • XConveyor V2 W120 L500 + $ 150.00
  • XConveyor V2 W120 L1000 + $ 200.00
  • No Conveyor
• Gripper
  • X3 Gripper Kit + $ 150.00
  • No Gripper
• Computer
  • AI PC Box + $ 300.00
  • No PC
• Number of Axes
  • 3/4/5
• Repeatability
  • ±0.15 mm
• Rated Voltage
  • 12-24 VDC
• Power Consumption
  • 120W
• Communication Interface
  • USB, Ethernet, TTL
• Installation Orientation
  • Desktop/Industry
• Base Dimensions
  • 400mm x 400mm
• Working Environment
  • 0° to 100°C
• Software
  • Delta X Software, Delta X Studio
